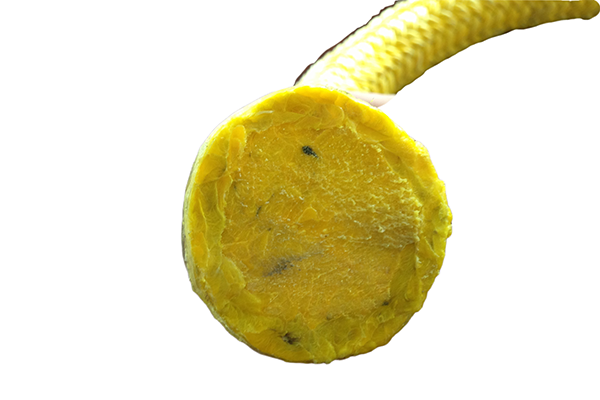

Double Braided UHMWPE Rope
Double Braided UHMWPE Rope
| Diameter | Circle | Weight | Breaking Strength In UHMWPE Fiber | Breaking Strength In Spectra® Fiber | ||||
|---|---|---|---|---|---|---|---|---|
| mm | inch | inch | g/m | kg/220M | lbs | kg | lbs | kg |
| 20 | 13/16 | 2-1/2 | 240.0 | 52.8 | 39800 | 18100 | 54800 | 24900 |
| 22 | 7/8 | 2-3/4 | 290.0 | 63.8 | 46500 | 21100 | 68900 | 31300 |
| 24 | 1 | 3 | 340.0 | 74.8 | 62500 | 29200 | 81200 | 36900 |
| 26 | 1-1/16 | 3-1/4 | 400.0 | 88.0 | 80300 | 36500 | 95000 | 43200 |
| 28 | 1-1/8 | 3-1/2 | 460.0 | 101.2 | 97000 | 44100 | 110900 | 50400 |
| 30 | 1-1/4 | 3-3/4 | 530.0 | 116.6 | 108000 | 49000 | 128500 | 58400 |
| 32 | 1-5/16 | 4 | 600.0 | 132.0 | 123000 | 56000 | 148500 | 67500 |
| 34 | 1-3/8 | 4-1/8 | 680.0 | 149.6 | 142500 | 64700 | 166600 | 75700 |
| 36 | 1-1/2 | 4-1/2 | 770.0 | 169.4 | 165000 | 75000 | 184200 | 83700 |
| 40 | 1-5/8 | 5 | 950.0 | 209.0 | 2250000 | 102000 | 271700 | 123500 |
| 44 | 1-3/4 | 5-1/2 | 1168.0 | 107.8 | 275000 | 125000 | 321000 | 145900 |
| 48 | 2 | 6 | 1368.0 | 126.4 | 328000 | 149000 | 365900 | 166300 |
| 52 | 2-1/8 | 6-1/2 | 1641.0 | 151.2 | 350000 | 159000 | 433200 | 196900 |
| 56 | 2-1/4 | 7 | 1900.0 | 173.0 | 405000 | 184000 | 498300 | 226500 |
| 60 | 2-1/2 | 7-1/2 | 2168.0 | 201.0 | 464000 | 211000 | 563500 | 256100 |
| 64 | 2-5/8 | 8 | 2441.0 | 226.0 | 550000 | 250000 | 626400 | 284700 |
| 68 | 2-3/4 | 8-1/2 | 2791.0 | 258.5 | 592000 | 269000 | 706900 | 321300 |
| 72 | 3 | 9 | 3141.0 | 291.0 | 662000 | 301000 | 788100 | 358200 |
| 80 | 3-1/4 | 10 | 3809.0 | 353.0 | 737000 | 335000 | 936100 | 425500 |
| 88 | 3 | 11 | 4582.0 | 291.0 | 847000 | 385000 | 1104400 | 502000 |
| 96 | 3-1/4 | 12 | 5391.0 | 353.0 | 906000 | 457000 | 1278000 | 580600 |
Features:
．Material：UHMWPE or Spectra® fiber/Polyester
．Construction：Double braided
．Specific Gravity：0.975g/m2 (float)
．Elongation：3.5% at break
．Melting Point：150℃/265℃
．Abrasion Resistance：Excellent
．UV and Chemicals Resistance：good
Application：
Single or split drum winch
primary mooring lines for various vessels
Wire replacements in commercial fishing trawl systems
Deep water lifting projects
Tractor tug winch lines
Primary mooring lines for single or split drum winches
-
